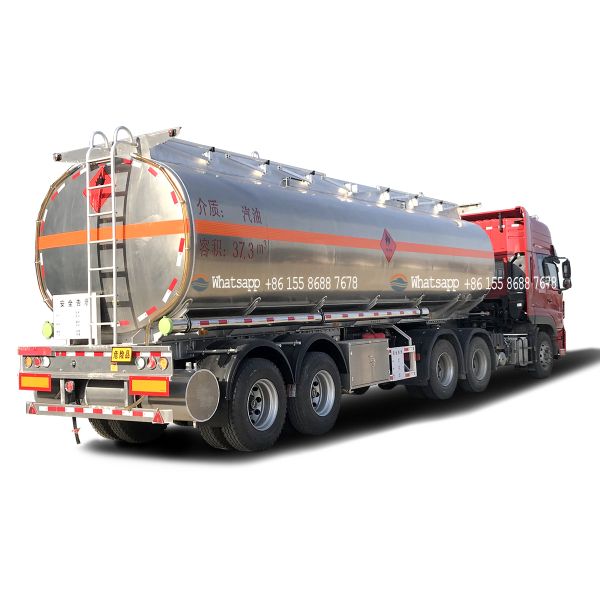

| Model SCS9401GYY |
| Design |
| Design standards | GB18564.1-2006 |
| Loading medium | Petrol |
| Loading and unloading methods | Bottom loading, unloading, and top direct charging |
| Vehicle size (mm) | 11300×2500×3750 |
| Total weight (kg) | 40000 |
| Curb weight (kg) | 6800 |
| Rated load capacity (kg) | 33200 |
| Tanker |
| Volume | 38000L |
| Apartment | 1. 9000L, 2. 8000L, 3. 4000L, 4. 9000L, 5. 8000L |
| Tank section | Class ellipse |
| Cylinder | Aluminum alloy 5182,6mm |
| head | Aluminum alloy 5182,6mm |
| breakwater | Aluminum alloy 5182,6mm |
| Pipeline and accessories |
| Manholes and quantity | European standard aluminum alloy explosion-proof manhole, 5 sets |
| Breather valve | Aluminum alloy material, 5 sets |
| Loading and unloading | Lower loading port |
| Oil and gas recovery | Equipped with an oil and gas recovery system |
| Prevent overflow | Equipped with anti overflow system |
| Safety bottom valve | Aluminum alloy 4-inch subsea valve |
| Discharge valve | Middle right side |
| Accessories |
| Tank top guardrail | Segmented lifting guardrail, anti-skid net on the top of the tank |
| Hose storage box | Stainless steel hose box, 1 piece on each side |
| Unloading hose | L=6000, 3-inch steel wire oil unloading pipe |
| Climbing ladder outside the tank | Internal ladder of the tank, external ladder |
| toolbox | aluminum alloy |
| Spare Tire Rack | 1 piece |
| fender | Factory supplied aluminum alloy integral type (module stamping type) |
| Side guardrail | Factory supplied aluminum alloy profiles |
| rear bumper | Factory supplied aluminum alloy profiles |
| Fire protection device | 8kg fire extinguisher, 2 pieces in total |
| Anti static device | 1 static conductive drag belt and 1 static conductive terminal block |
| Underframe section |
| axle | FUWA 13 ton drum brake shaft |
| Overhang | 8-piece steel plate spring suspension |
| tire | Factory equipped mountain 12R22.5 |
| Steel ring | 9.0 steel rings, 12 pieces (Aluminum alloy steel ring) |
| Lift leg support | Yangzhou 28T single action |
| traction pin | 90 # prefabricated |
| Electric |
| lamps and lanterns | 24V system, 7-pin socket, LED lighting |
| Circuit system | Explosion-proof junction box |
| | The rear bumper is equipped with turn signals, brake lights, reverse lights, driving lights, and fog lights on both sides |
| Wire | All wires are sealed with corrugated tubes |
| Brake syestem |
| Relay Valve | Factory logo |
| ABS | Factory logo |
| other | Factory logo |
| Anti corrosion protection |
| Surface inside the tank | clean |
| paint | Aluminum alloy natural color |
| External treatment of tank body | Mirror polishing |
| Label |
| nameplate | Factory logo |
| Customer Standard | Made according to customer requirements |
| sign | Factory logo, diamond shaped and square shaped notices |
| Main identification of tank body | Orange reflective tape, both sides and tail of the tank |
| Red and white reflective stickers | 3M reflective sticker |
| Company Logo | SCS |
| Doc/Tools |
| Tank inspection report | Tank Inspection Report |
| certificate | Vehicle Qualification Certificate |
| tools | a set |
